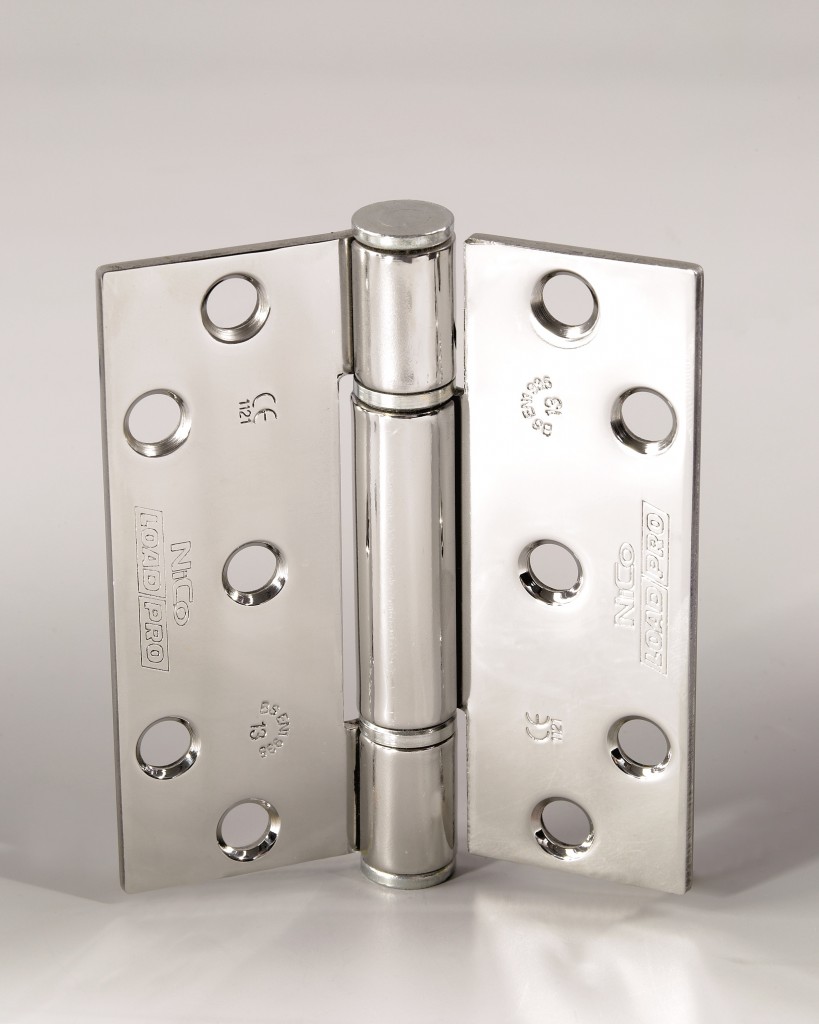

4817 Maintenance Free UKCA & CE Grade 13 Fire Door 2 Bearing Butt Hinge
£4.77 – £5.50
Description
Features & Benefits
- Maintenance free bearing
- Grade: 304 stainless steel or CS4 mild steel & Supercoat
- Ideal for use in high traffic environments
- Ideal for use with fingertrap protection
- Maximum adjusted door weight: 120kg
- Recommended minimum door thickness: 44mm
- Supplied with No.10 1¼” screws
- 25 year mechanical guarantee

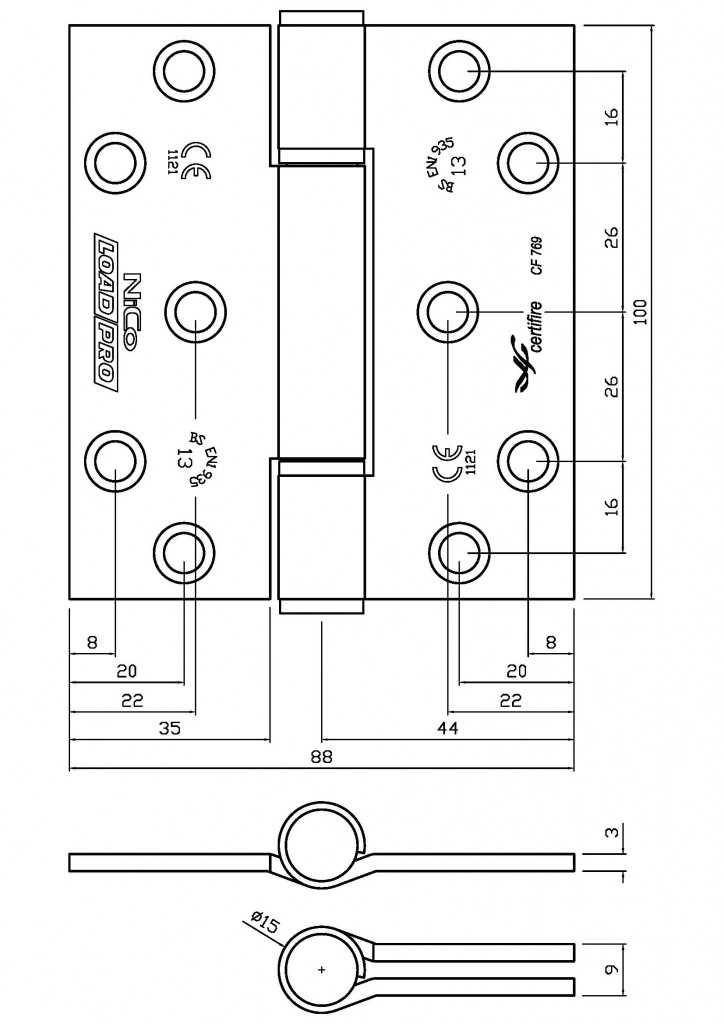

Technical Data
PART NUMBERS
Part No. |
Finish |
Box/Outer |
| 4815 ZY | Yellow Zinc | TEL:10 / 40 |
| 4815 S5 | Supercoat 500 ZP | 10 / 40 |
| 4815 C | Powdercoat | TEL:10 / 40 |
| 4815 SS-S | Satin ST/ST | 10 / 40 |
TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
Additional information
| size | |
|---|---|
| unit |
