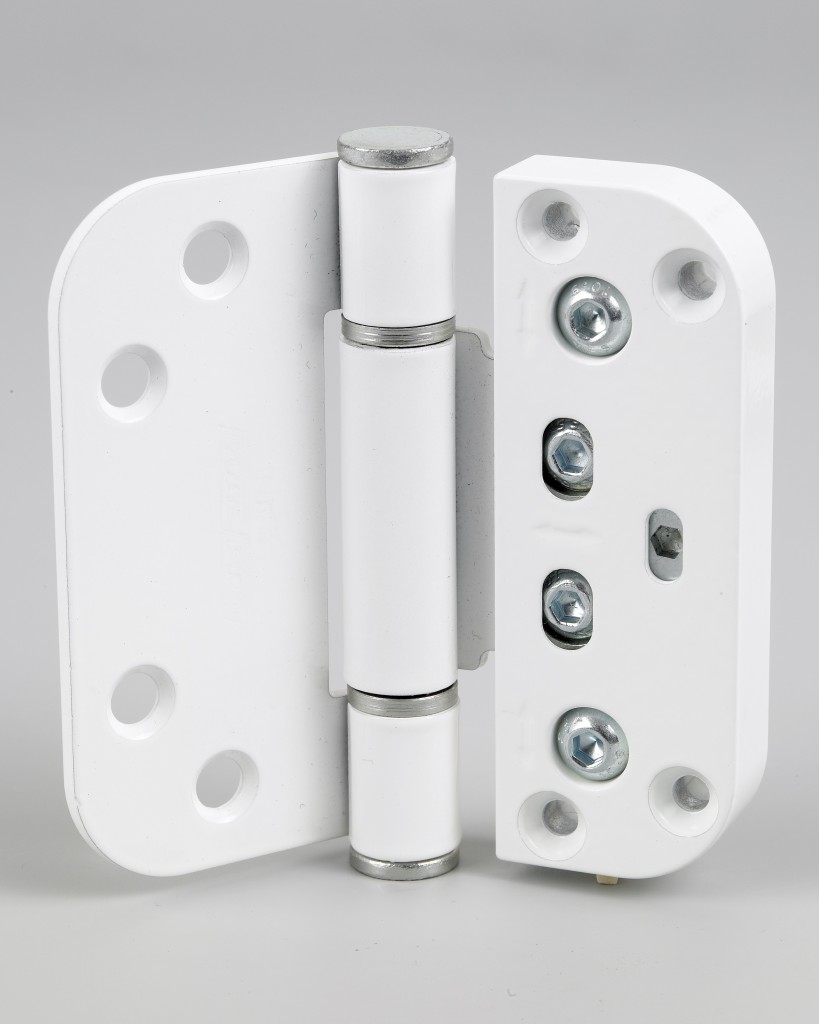

4917 Carbon Steel Maintenance Free 3D Adjustable Door Hinge
£92.80
Out of stock
Description
Features & Benefits
- Maintenance free
- Independent, in situ 3 way adjustment with no shims required

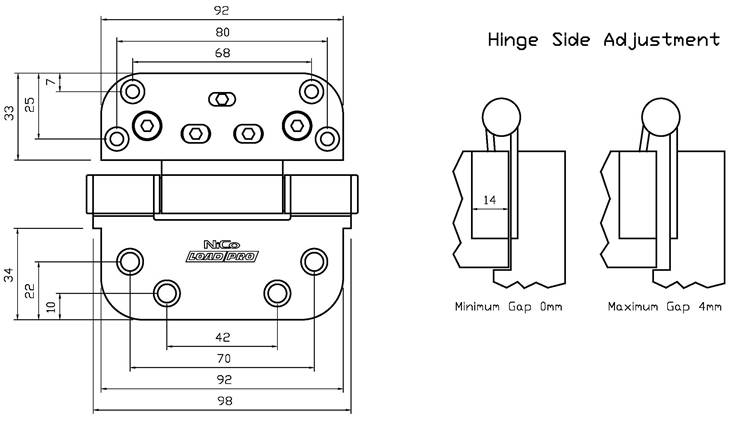

- /- 2.5mm height adjustment, /- 2.5mm side adjustment, /- 2.0mm depth ( compression ) adjustment
- Hinge remains fixed to the door during adjustment process
- All adjustments via one 4mm allen key
- 80kg load carrying capability over 100,000 cycles
- Low Friction Bearings for smooth operation
- Steel hinge body with high performance zinc alloy adjustment housings
- Excellent corrosion resistance including Nico Supercoat option
- 4917 Carbon Steel option ( special order only )

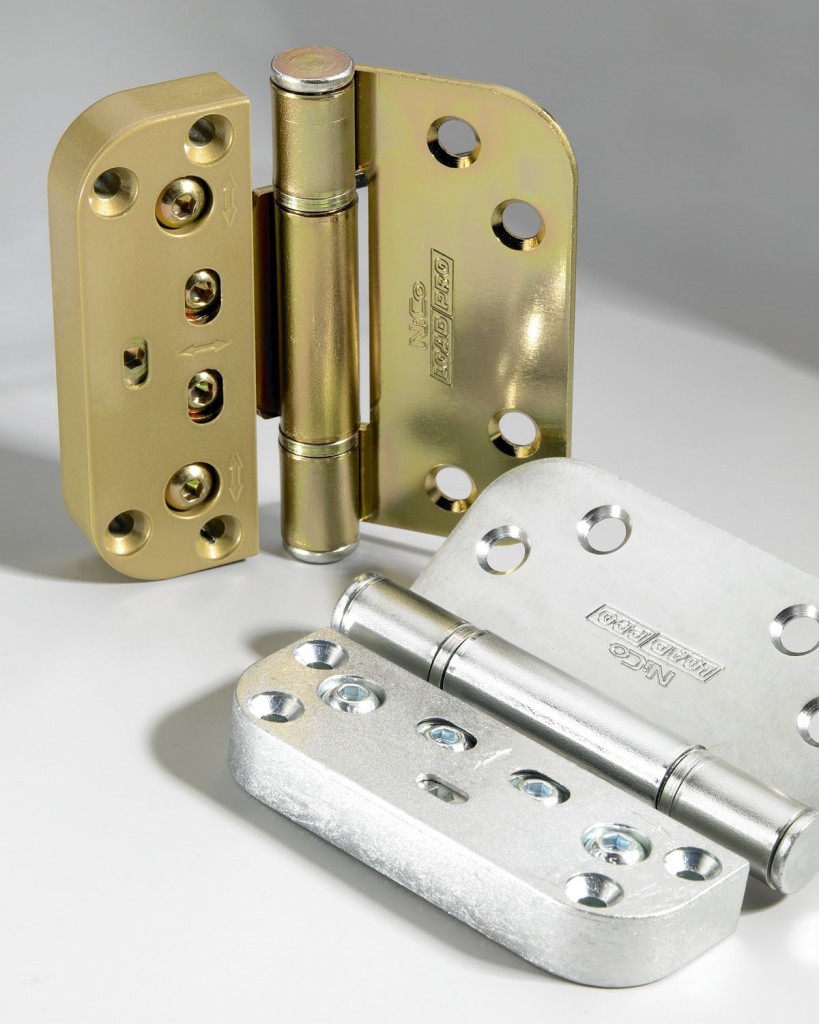

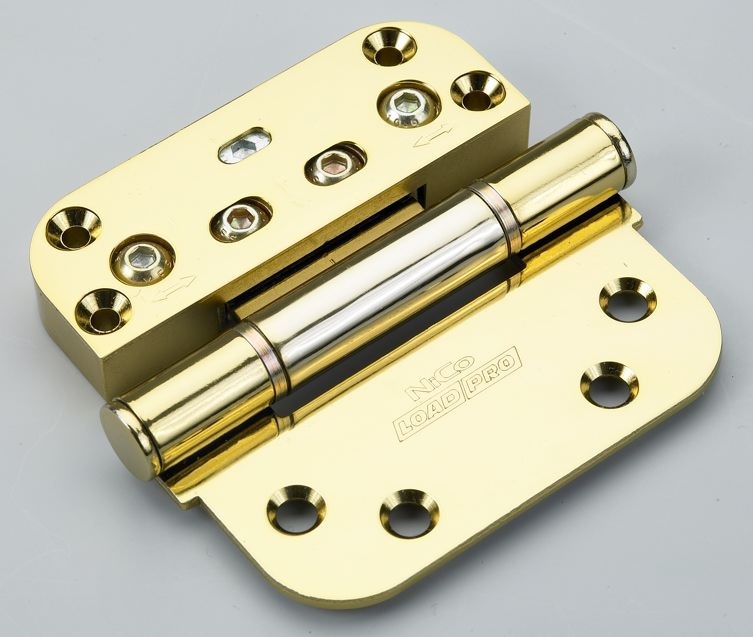

- Choice of Decorative Finishes Available
- Open Out version for enhanced security
Testing & Technical
- Made in Britain to an ISO 9001 Quality System
- Corrosion tested to BS EN1670 Grade 5: 480 hours
- Successfully tested to BS EN1935: 2002 Building Hardware for Single Axis Hinges
4917 Carbon Steel 3D Adjustable Hinge: Standard
Finish |
Size |
Product Code |
Max. Adjusted Door Weight |
Box Quantity |
| Supercoat Zinc | 92 x 92 x 14mm/2.7mm | 4917 S5 | 80kg | 10 |
Additional information
| finish | |
|---|---|
| size | |
| unit | |
| per-piece |
