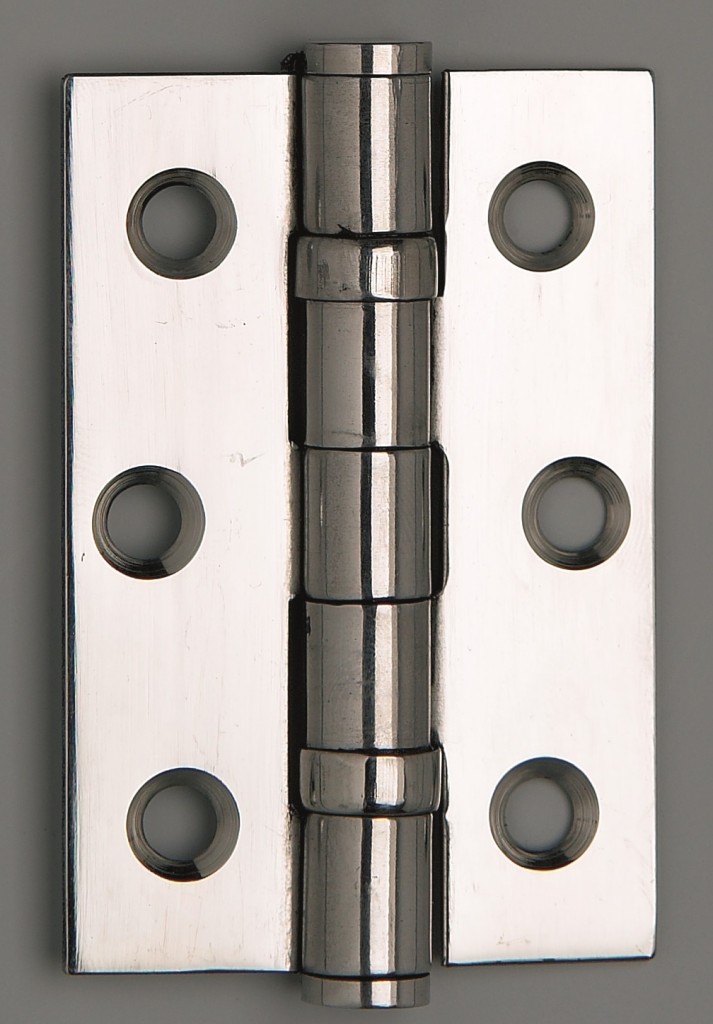

5330 Premium Ball Bearing Stainless Steel Butt Hinge 75mm
£126.60
Description
Features & Benefits
- 201 Grade Stainless Steel for Corrosion Resistance
- 2.5mm Low Friction Bearings for consistent performance
- Strong and Reliable
These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. Hinges should be lubricated with a light machine oil immediately after installation, and period lubrication should be conducted as required (minimum every 25,000 cycles).

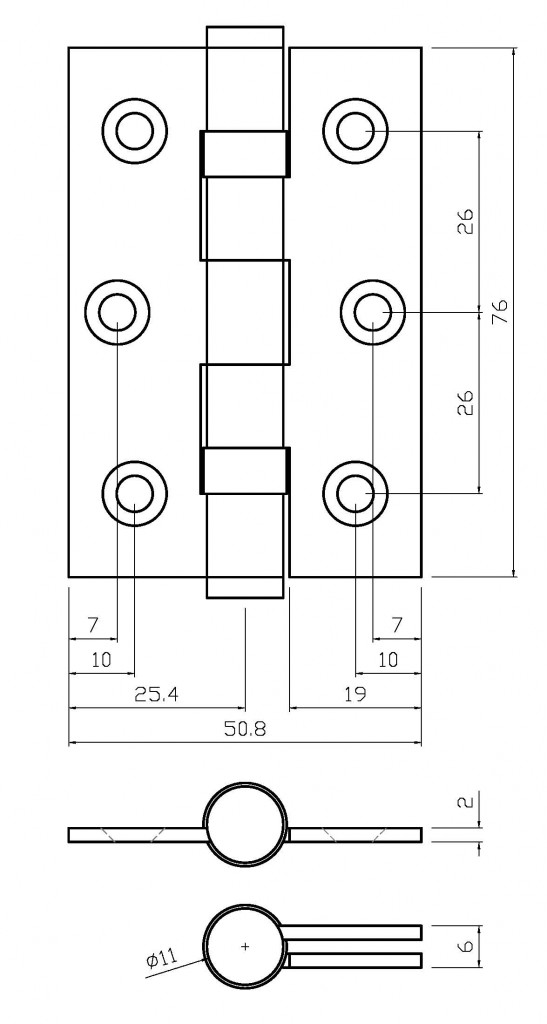

Size |
75mm |
| Length | 75mm |
| Width Open | 50mm |
| Thickness | 2.0mm |
| Material Grade | 201 Stainless Steel |
| Screw Holes | 6 |
| Boxed Range | 60 x 1 pair |
| Satin Part Number | 53300 |
| Polished Part Number | 5330P |
| Max. load (2 hinges fitted) | 80kg |
| Max. load (3 hinges fitted) | 80kg |
| Material | Stainless Steel |
