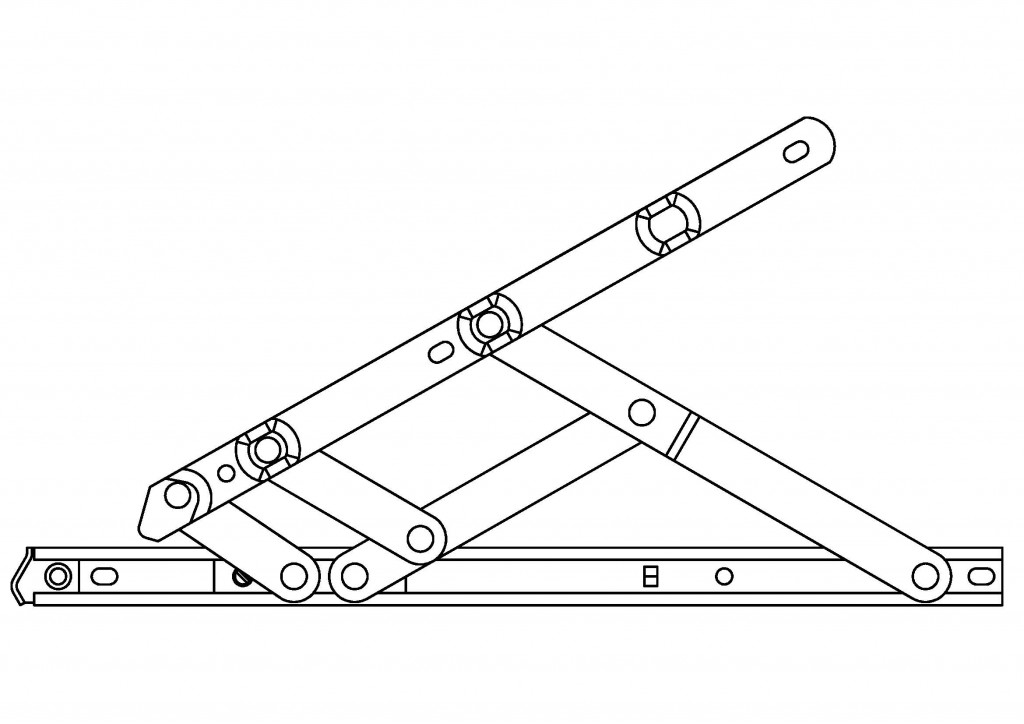

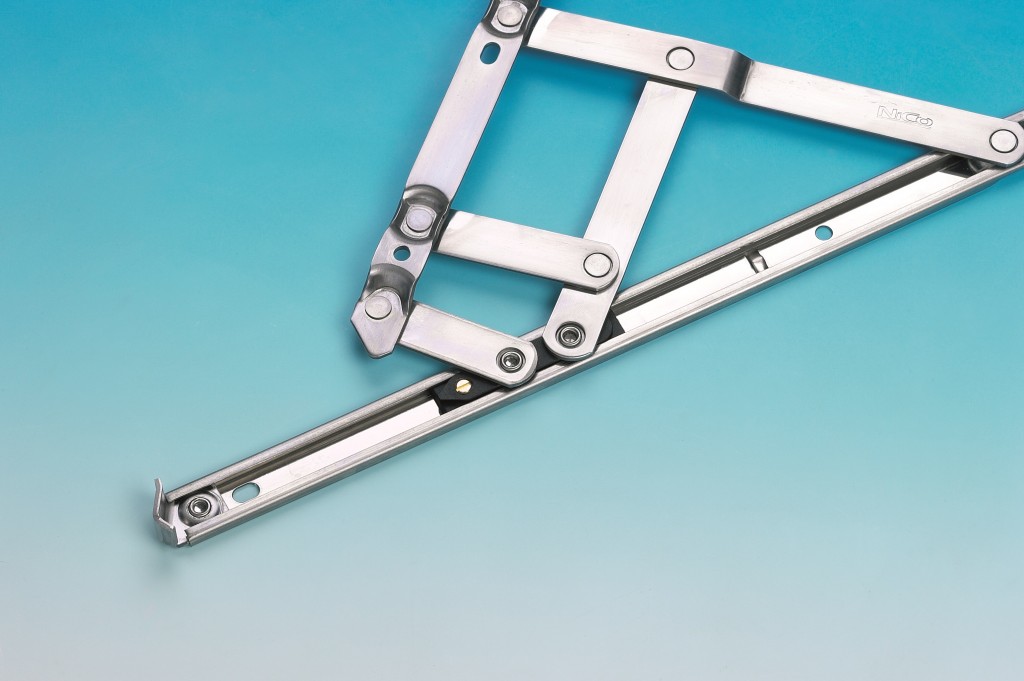

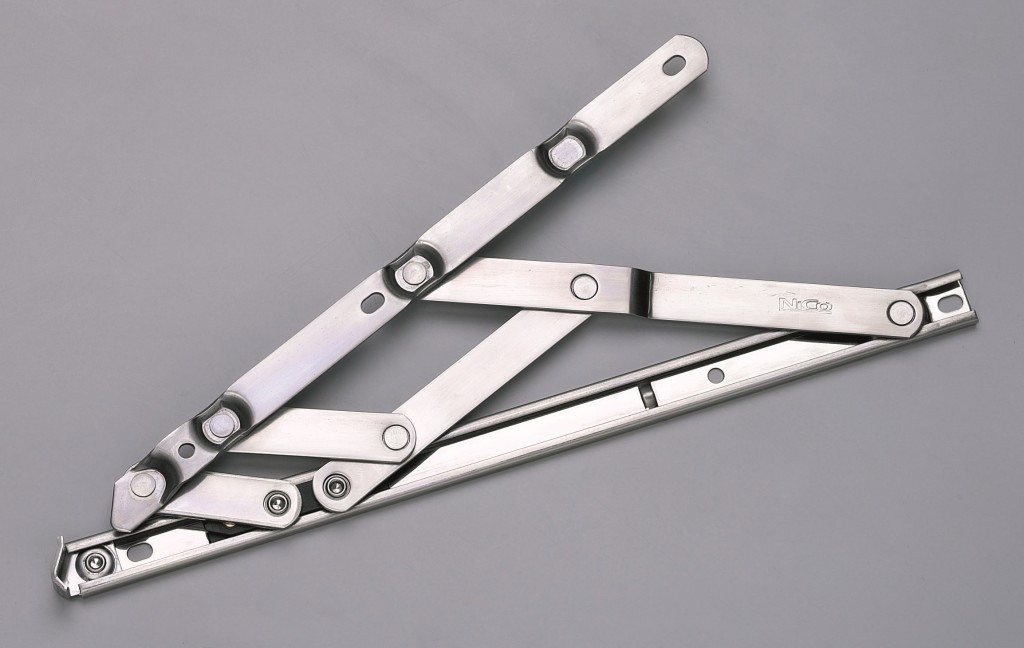

Egress Only Side Hung Friction Hinges 13mm

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• Safe and simple for fast escape
• Stainless Steel riveted nose cap for strength and reliability
• 3 stage counterbore process for improved resistance to wear
• Glass reinforced nylon slide eliminating breaking and wear
• 4.8mm Stainless Steel rivets for improved load carrying
• Stainless construction for exceptional corrosion resistance
• Brass adjustment screw for adjustable friction
• 10 year mechanical guarantee

Technical Data

The Nico Egress Only Hinge is manufactured in stainless steel and offers excellent load bearing characteristics. It is available in 12?, 14? and 16? side hung variants. Slotted fixing holes in the base channel and sash bar, with a final fixing hole in each component, provide maximum sash/frame adjustment. The all stainless nose-cap is riveted on to the hinge for extra strength and rivet holes are counterbored in a 3 stage manufacturing process. This means parts are manufactured to tight tolerances and ensures reliable operation of the finished hinges.The friction slide is made from high strength glass reinforced nylon with an adjustable resistance screw to regulate friction

Standard Reach and Long Reach

The location of the friction stay on the profile plays an important role in which product should be used. Nico produce two variants of the 16? Egress Only Hinge which suit different profile styles, and the Egress Selection Guide can be used to determine which is the right stay for you.

13mm Stack Height
