Flush Hinge – 4 Hole
Price range: £36.00 through £48.00
Description
Features & Benefits
- Made In Britain
- Simple and Easy to Fit
- Decorative Finishes
These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. Hinges should be lubricated with a light machine oil immediately after installation, and period lubrication should be conducted as required (minimum every 25,000 cycles).

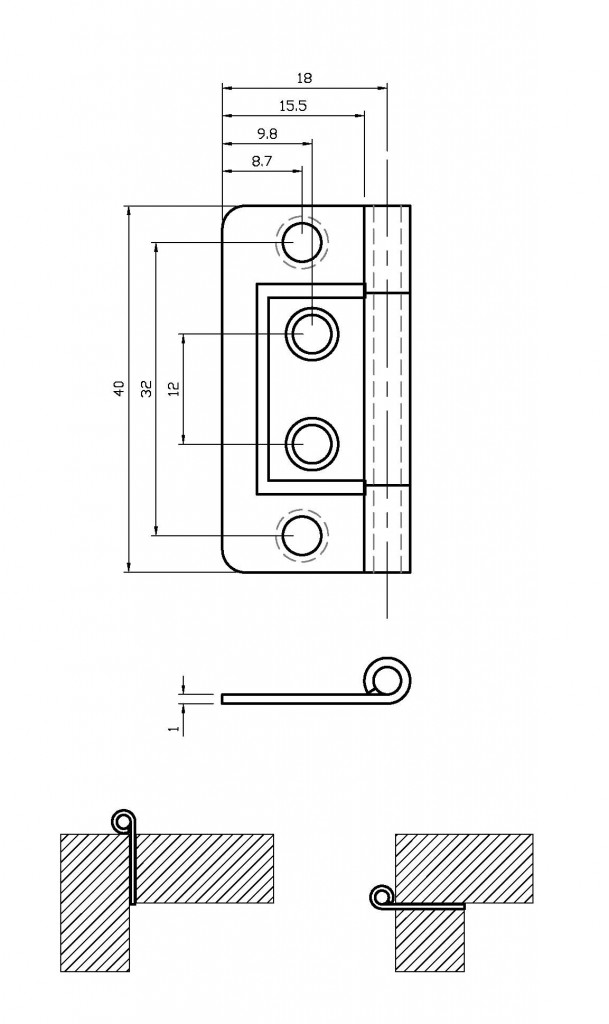

Size |
40mm (1½”) |
50mm (2?) |
| Length | 40mm | 50mm |
| Width | 16mm | 18mm |
| Thickness | 1.0mm | 1.2mm |
| Screw Holes | 4 | 4 |
| Screw Size | 3 | 4 |
| Bulk Packed | 500 | 300 |
| Electro-Brassed | 1940 0 11 02 | 1950 0 11 02 |
| Florentine Bronzed | TEL:1940 0 11 03 | 1950 0 11 03 |
| Zinc-Plated | 1940 0 11 04 | 1950 0 11 04 |
| Boxed Range | – | 12 x 25pairs |
| Electro-Brassed | – | 1950 9 11 02 |
| Duty | Light | Light |
| Max load 2 hinges fitted | 5kg | 7kg |
| Max load 3 hinges fitted | 7.5kg | 10kg |
| Material | Mild Steel | Mild Steel |
TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
