Rambolt Bi-Directional Security Espagnolette 22mm Backset 9mm Cam
£100.80 – £156.48
Features & Benefits
- Rigorously tested ( see related downloads on this page )
- All cams travel towards the vulnerable corners of the window
- Combination of adjustable and non adjustable cams to enhance security
- Enhanced security as a result of profile specific, 4 screw hole, solid zinc keeps

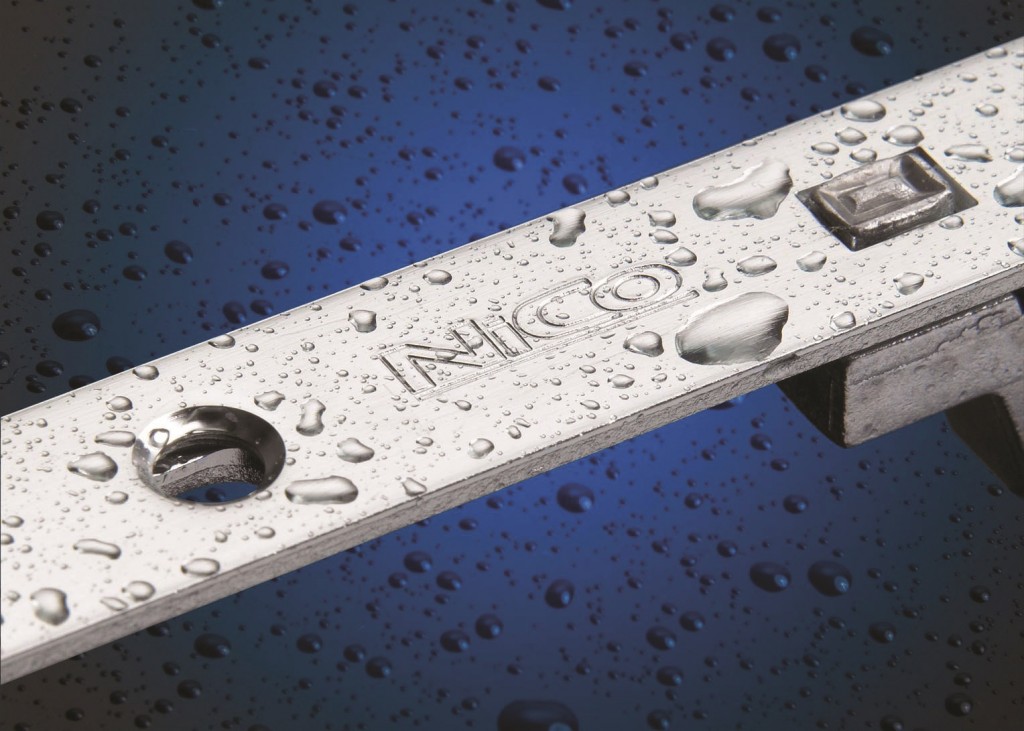

- Exceptional resistance to corrosion achieved by Supercoat finish
- Adjustable cams ( /- 1mm ) allow weatherseal compression
- Night vent facility provided on keeps
- Strong. smooth and reliable gearbox gives long life performance
- 10 year mechanical guarantee
Technical Data

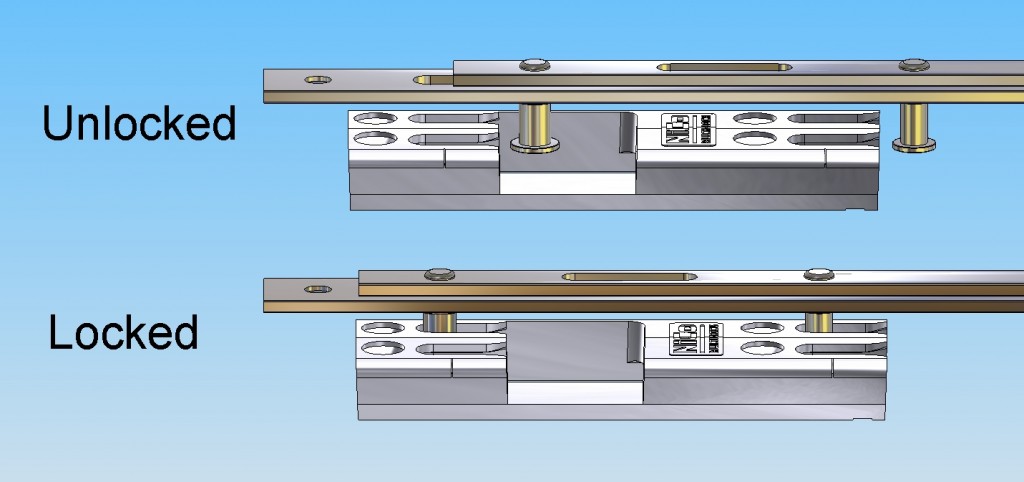

The RAM Bolt is fast and easy to fit in a standard eurogroove. It features a 20mm or 22mm gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of /- 1mm. Heavy guage materials and fixing points protect against attack.
Fitting instructions are provided on the RAM Bolt pdf in related downloads
Description |
Backset |
Part No. 7.8 Cams |
Part No. 9.0 Cams |
Number of Cams |
Box Quantity |

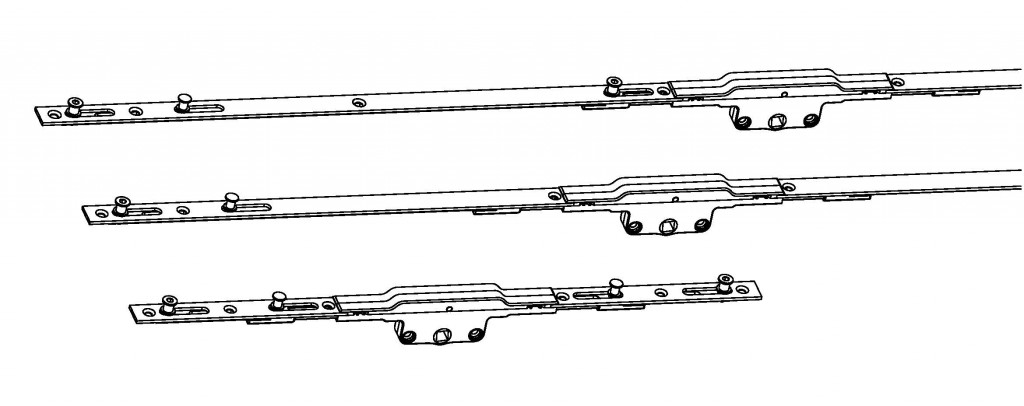

| 420mm RAM Bolt | 22mm | 958422 | 959422 | 4 | 20 |
| 550mm RAM Bolt | 22mm | 958622 | 959622 | 4 | 20 |
| 750mm RAM Bolt | 22mm | 958822 | 959822 | 4 | 20 |
| 950mm RAM Bolt | 22mm | 9581022 | 9591022 | 5 | 20 |
| 1150mm RAM Bolt | 22mm | 9581222 | 9591222 | 5 | 20 |
Â
