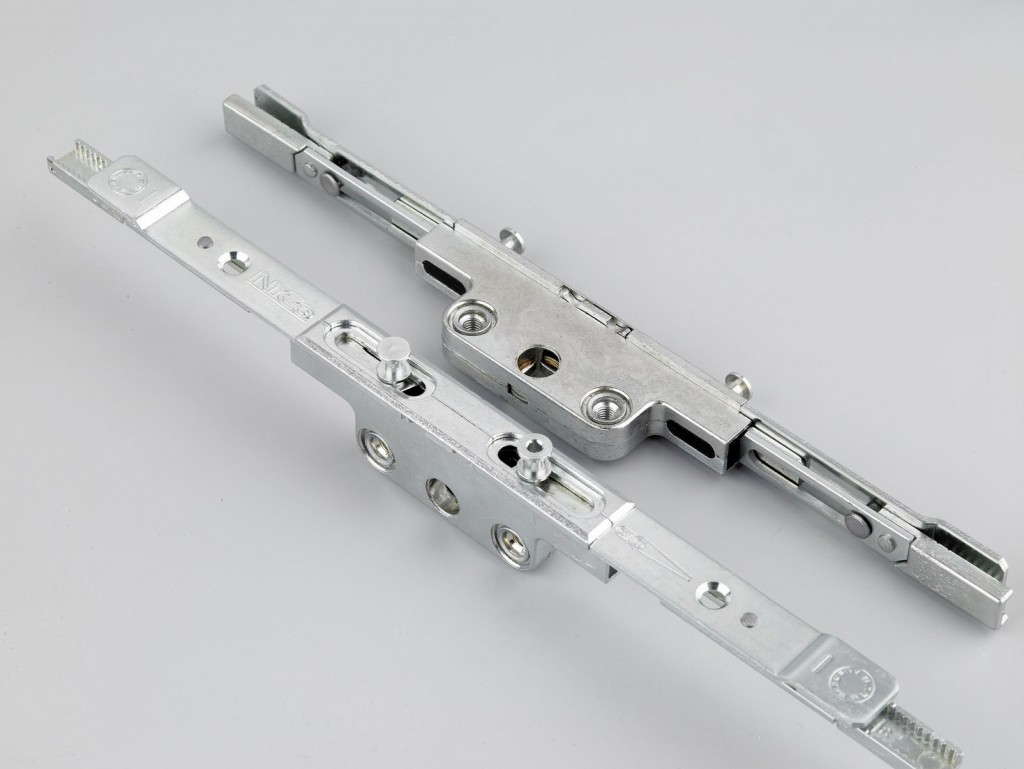

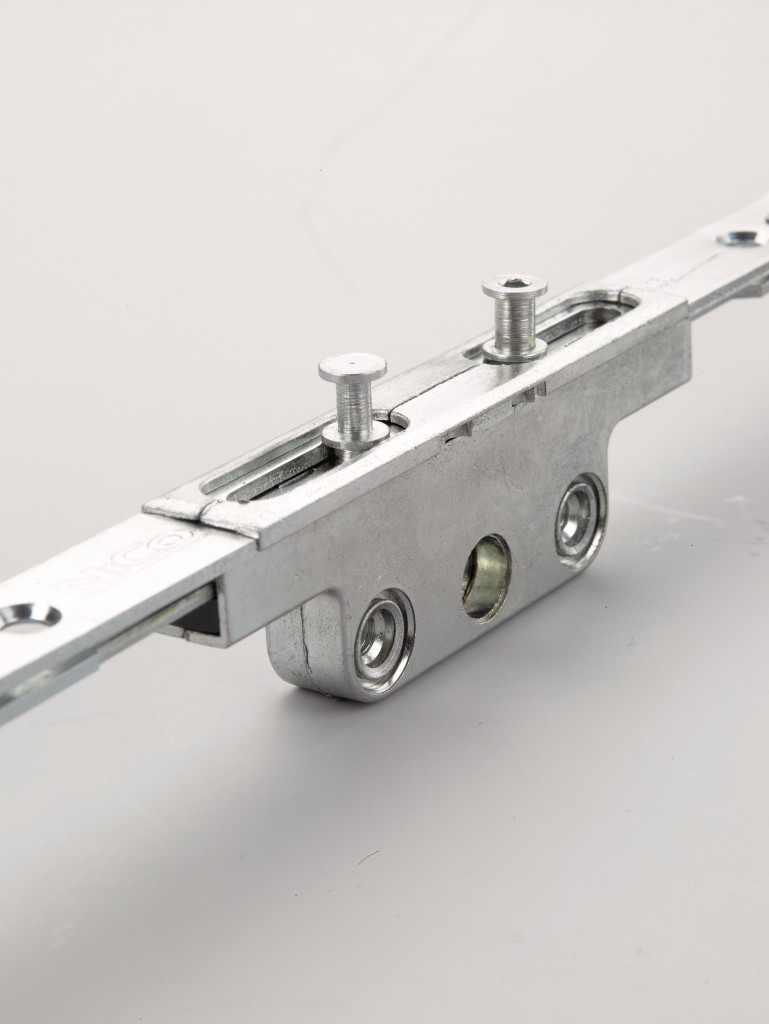

Security Plus MK 2 Shootbolt 22mm Backset 9mm Cam

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• Cams on the gearbox, with cams and shootbolts on the extensions which travel towards the vulnerable corners of the window
• Enhanced security as a result of profile specific solid zinc keeps
• Exceptional resistance to corrosion achieved by Supercoat finish
• Low handle height options for multi occupancy dwellings
• Adjustable cams ( /- 1mm ) allow weatherseal compression
• Night vent facility provided on keeps
• Compatible range of keeps for French Windows
• Strong. smooth and reliable gearbox gives long life performance
• 10 year mechanical guarantee

Technical Data

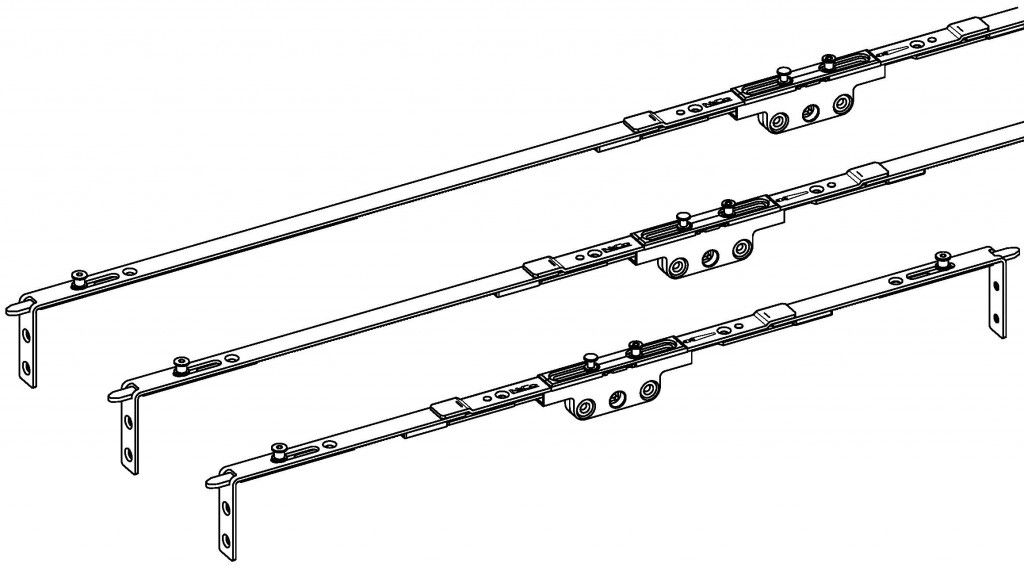

The MK 2 Shootbolt is fast and easy to fit in a standard eurogroove. It features a 22mm Gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of /- 1mm. A range of extensions (detailed on the Shootbolt Extensions webpage) make the shootbolt suitable for a wide range of window applications.

Fitting instructions are provided on the Nico Shootbolts pdf in related downloads
