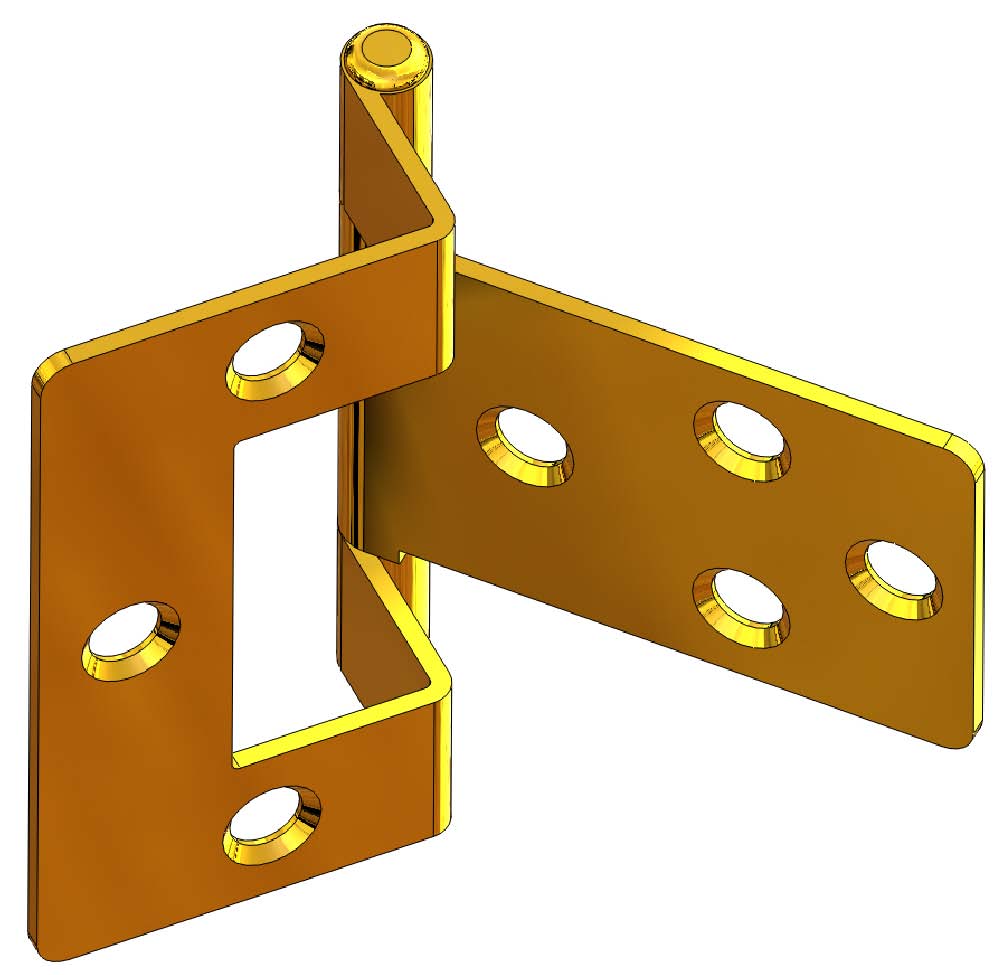

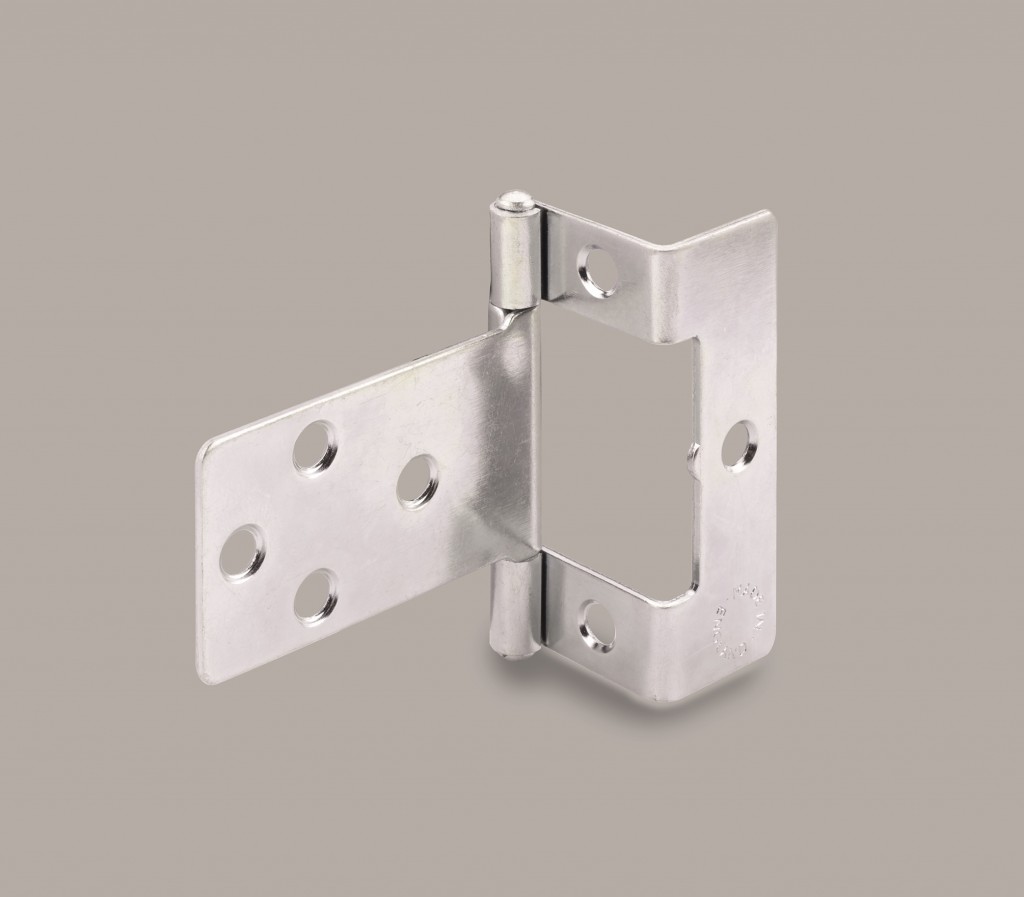

Single Cranked Hinge

Name: Single Cranked Hinge
Brand: Nico
SKU: NC0430
Availability: BackOrder

£160.00

Single Cranked Hinge - 50mm Single 10mm, Electro Brassed – 50mm Single 10mm, Electro Brassed

£160.00

In Stock

Per piece price £0.32

Single Cranked Hinge - 50mm Single 16mm, Electro Brassed – 50mm Single 16mm, Electro Brassed

£160.00

In Stock

Per piece price £0.32

Single Cranked Hinge - 50mm Single 16mm, Florentine Bronzed – 50mm Single 16mm, Florentine Bronzed

£160.00

In Stock

Per piece price £0.32

Single Cranked Hinge - 50mm Single 16mm, Zinc Plated – 50mm Single 16mm, Zinc Plated

£160.00

In Stock

Per piece price £0.32

size

finish

Clear

SKU: NC0430 Categories: Flush Hinges, Hinges Brand: Nico

Description

Features & Benefits

Made in the Britain
Simple and Easy to Fit
Decorative Finishes

These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.

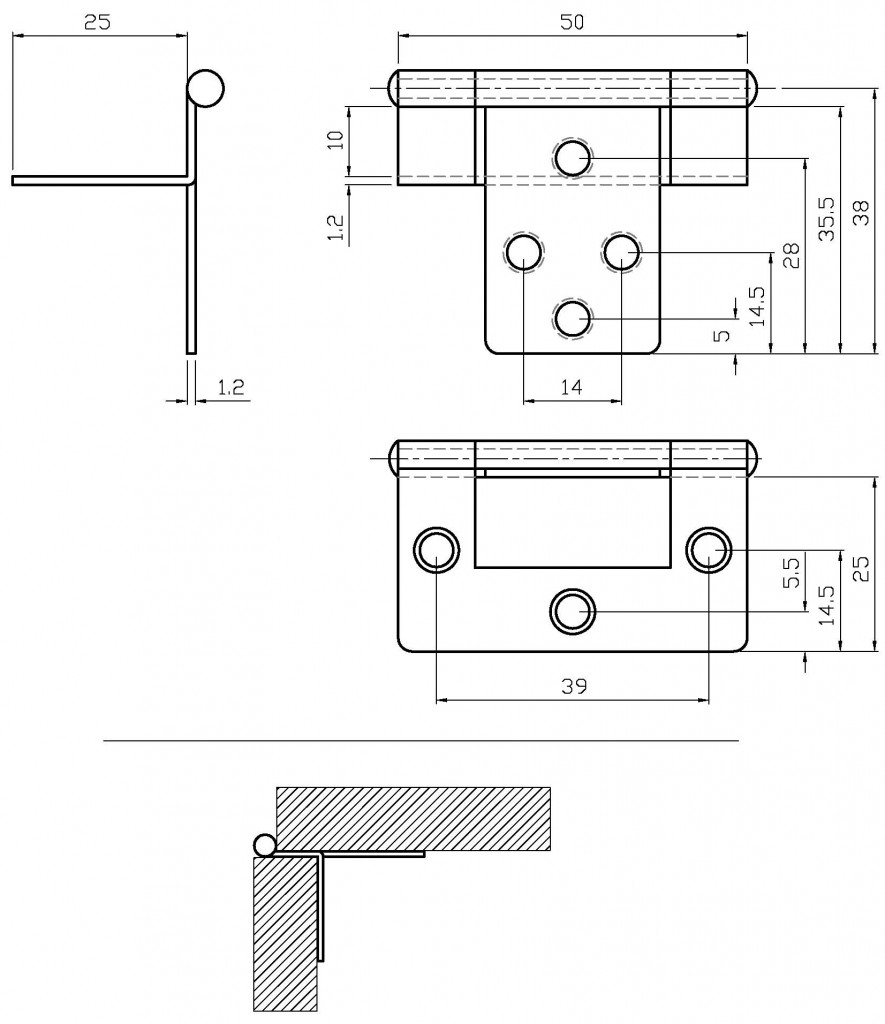

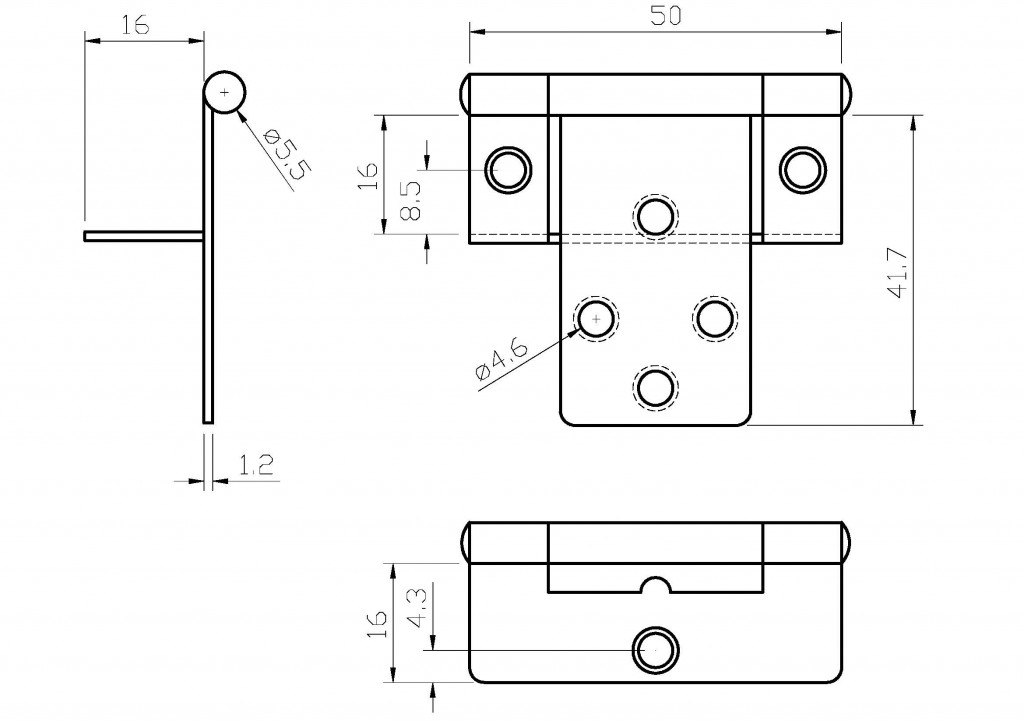

Size	10mm (?”)	16mm (?”)
Length	50mm	50mm
Cranked	10mm	16mm
Thickness	1.2mm	1.2mm
Screw Holes	7 (all to Face)	7
Screw Size	4	4
Bulk Packed	500	500
Electro-Brassed	0430 0 22 02	0410 0 22 02
Florentine Bronzed	–	TEL:0410 0 22 03
Zinc-Plated	–	0410 0 22 04
Duty	Light	Light
Max. load (2 hinges fitted)	7kg	7kg
Max. load (3 hinges fitted)	10kg	10kg
Material	Mild Steel	Mild Steel
