1838 Cranked Butt Hinge – 38mm
£35.00
Description
Features & Benefits
- Made in Britain
- Strong and Reliable
- Choice of Finishes
These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.

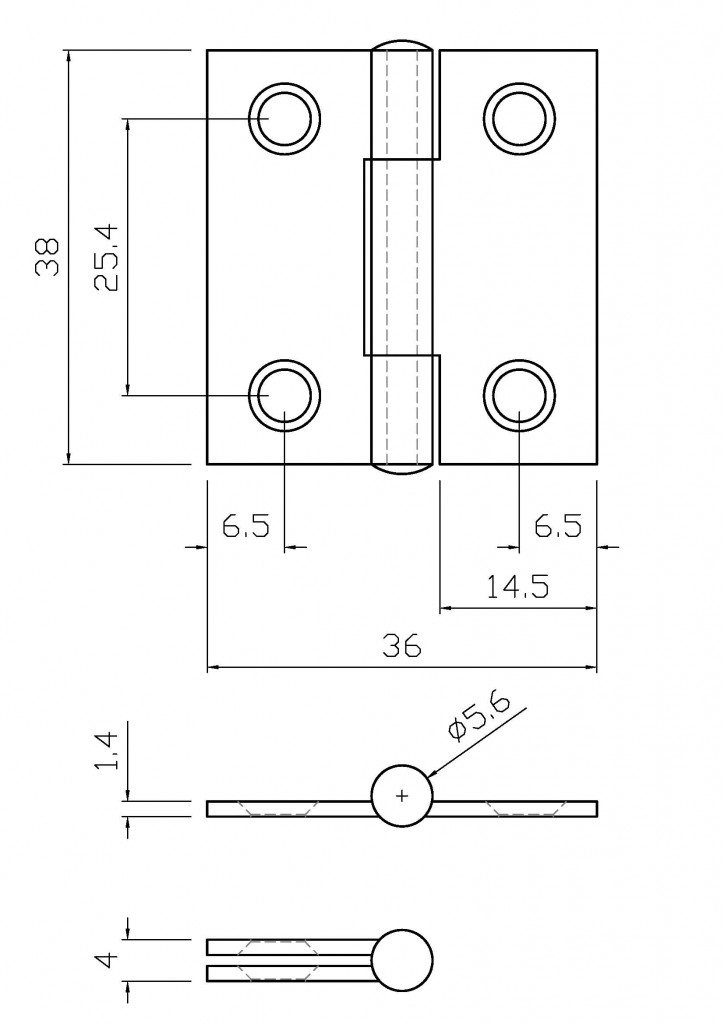

Size |
38mm (1½”) |
| Length | 38mm |
| Width Open | 35mm |
| Thickness | 1.4mm |
| Screw Holes | 4 |
| Screw Size | 5 |
| Bulk Packed | 250 |
| Self-coloured | 1838 0 22 01 |
| Electro-brassed | TEL:1838 0 22 02 |
| Zinc-plated | 1838 0 22 04 |
| Duty | Light Duty |
| Max. Load (2 hinges fitted) | 7kg |
| Max. Load (3 hinges fitted) | 10kg |
| Material | Mild Steel |
TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
