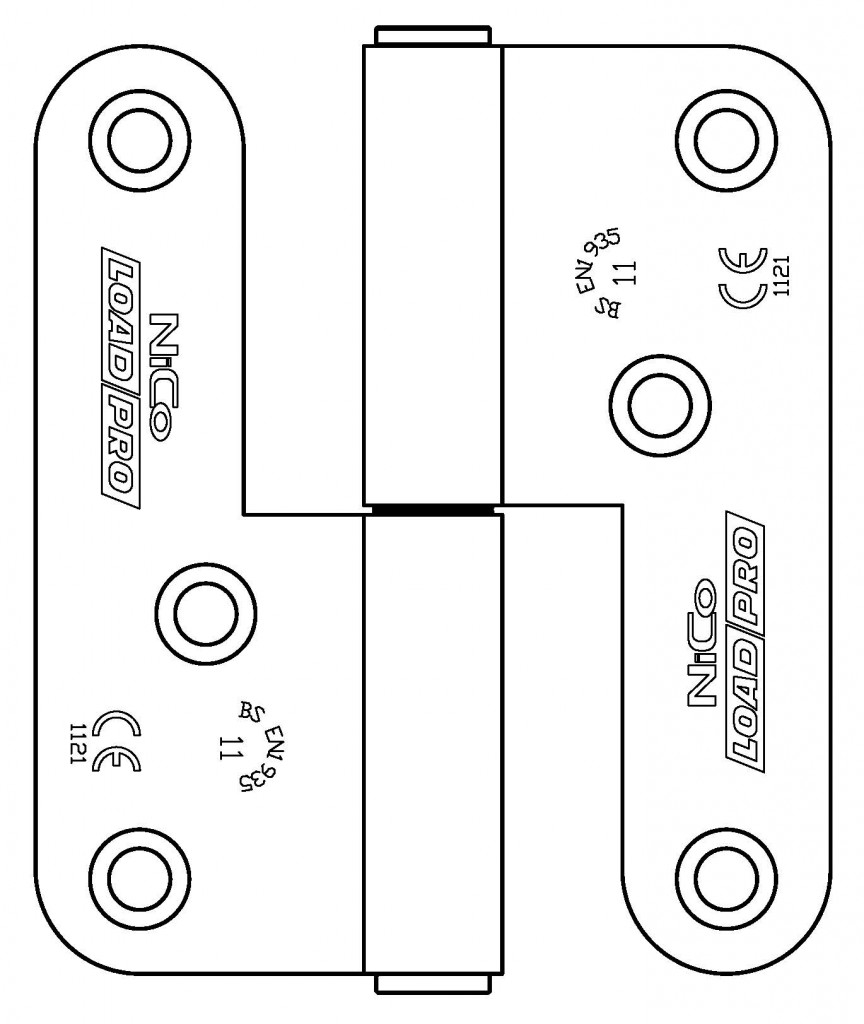

4715 Maintenance Free UKCA & CE Grade 11 Offset Lift Off Fire Door Hinge
£144.00 – £146.56
Description
Features & Benefits
- Self lubricating polymer bearing
- Polymer bearings provide low co-efficient of friction
- Bearings guarantee the right lubrication for the life of the hinge
- Grade: 304 stainless steel or CS4 mild steel & Supercoat
- Ideal for use in high traffic environments
- Ideal for use with fingertrap protection
- Easy alignment of door leaf and frame during fitting
- Maximum adjusted door weight: 80kg
- Recommended minimum door thickness: 35mm
- Supplied with No.10 1¼” screws
- 25 year mechanical guarantee
Technical Data
PART NUMBERS
Part No. |
Finish |
Box/Outer |
| 4715 5 ZP | Zinc Plate | 10 / 40 |
| 4715 6 ZP | Zinc Plate | 10 / 40 |
| 4715 5 ZY | Yellow Zinc | 10 / 40 |
| 4715 6 ZY | Yellow Zinc | 10 / 40 |
| 4715 5 S5 | Supercoat 500 ZP | 10 / 40 |
| 4715 6 S5 | Supercoat 500 ZP | 10 / 40 |
| 4715 5 C | Powdercoat | TEL:10 / 40 |
| 4715 6 C | Powdercoat | TEL:10 / 40 |
| 4715 5 SS-S | Satin ST/ST | TEL:10 / 40 |
| 4715 6 SS-S | Satin ST/ST | TEL:10 / 40 |
Additional information
| size | |
|---|---|
| unit | |
| handing | |
| finish |
